 Industrial exoskeletons are emerging as an important solution for reducing physical strain in demanding workplaces. From logistics and warehousing to manufacturing, construction, and airport baggage handling, wearable robotic systems are helping workers perform repetitive lifting and overhead tasks with greater support and comfort.

 As these systems become more advanced, carbon fiber reinforced polymer (CFRP) is playing an increasingly important role in the structural design of industrial exoskeletons.

Why Carbon Fiber Matters in Exoskeleton Design

 Unlike conventional industrial robots, an exoskeleton is worn directly by a human operator. This makes weight reduction particularly important.

 The structural components must provide sufficient strength and stiffness while adding as little additional weight as possible.

 Carbon fiber composites offer several advantages for this application:

High strength-to-weight ratio

High stiffness and dimensional stability

Low density compared with many traditional metals

Excellent fatigue resistance

Corrosion resistance

Design flexibility for complex structural components

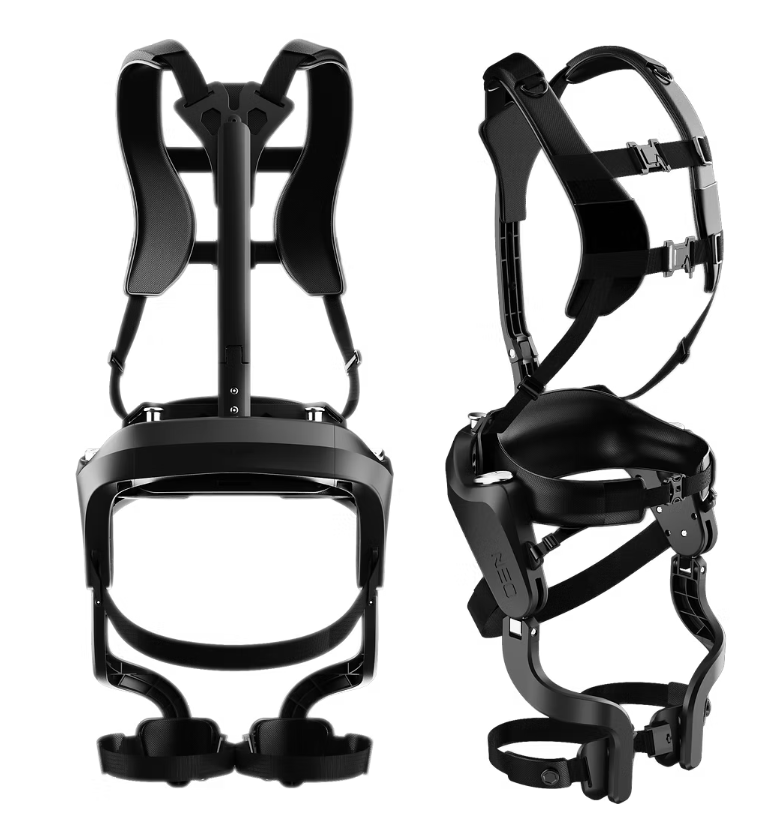

These characteristics make CFRP particularly suitable for load-bearing structures such as back supports, shoulder supports, arms, brackets, frames, and other customized components.

 Real-World Application: German Bionic Cray X

 One of the most notable examples of carbon fiber being used in industrial exoskeletons is the collaboration between German Bionic and SGL Carbon.

 For the Cray X exoskeleton, the main support structure was redesigned from aluminum to carbon fiber reinforced plastic.

According to SGL Carbon, the CFRP main support structure achieved more than 50% weight reduction compared with its aluminum predecessor while also providing significantly higher stiffness.

 The development involved digital simulation, prototype manufacturing, structural optimization, and load testing before moving toward production.

 This case demonstrates how composite materials can contribute not only to weight reduction but also to the overall mechanical performance of wearable robotic systems.

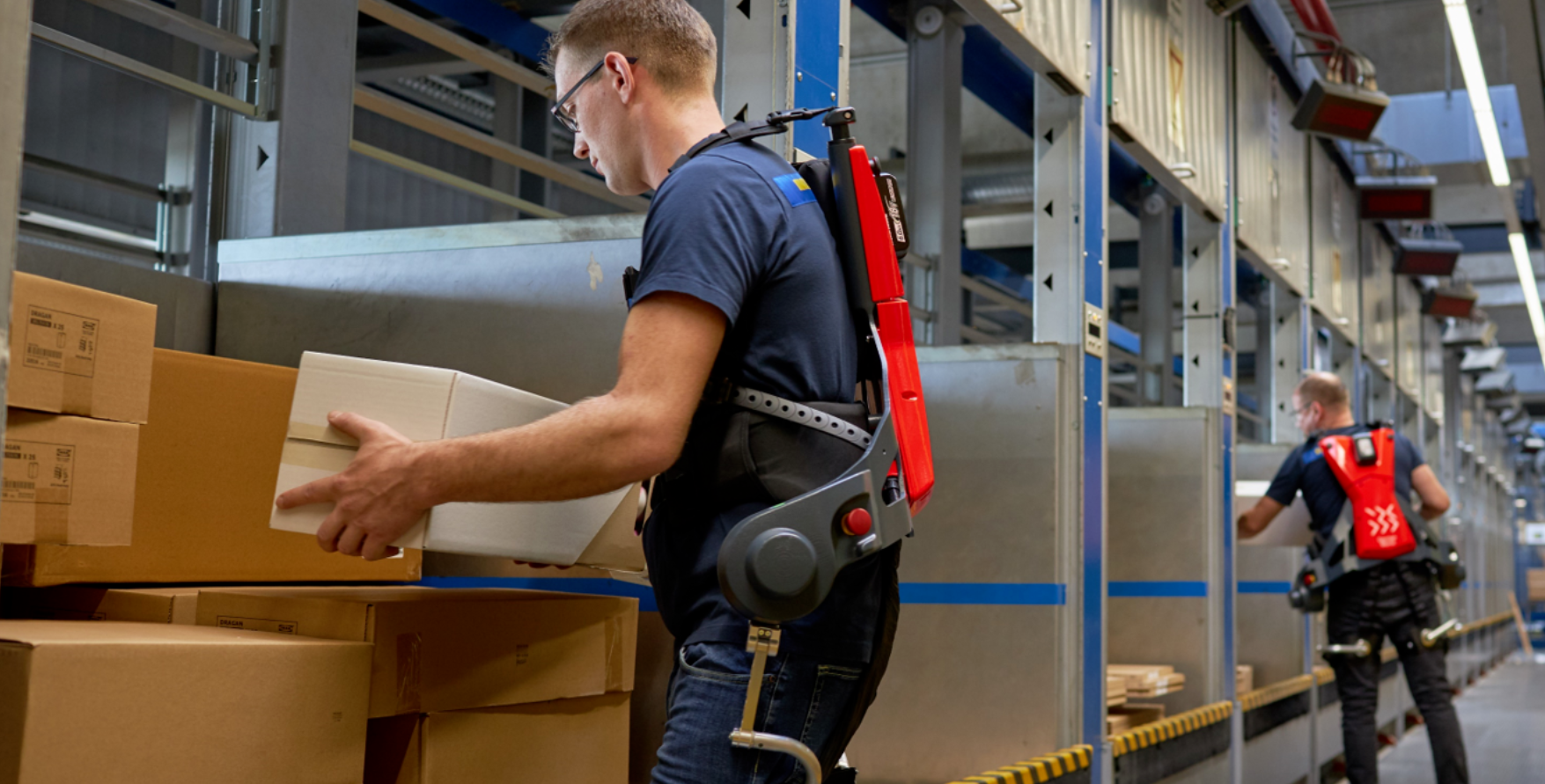

Carbon Fiber for Logistics and Warehousing

 Logistics is one of the most promising application areas for industrial exoskeletons.

 Workers in warehouses and distribution centers may repeatedly:

Lift and move packages

Pick products from shelves

Load and unload goods

Handle parts and components

Perform repetitive bending and lifting operations

In these environments, even relatively light objects can create significant physical strain when handled hundreds or thousands of times per day.

 Industrial exoskeletons can provide additional support while maintaining the worker's natural movement.

 Carbon fiber structures can further improve the system by reducing the weight of the wearable device without sacrificing structural performance.

Manufacturing Applications

 The automotive, machinery, electronics, and other manufacturing industries are also exploring wearable robotics.

 For example, John Deere has deployed Comau's MATE-XT wearable exoskeleton technology in parts logistics and packaging operations.

 According to Comau's published case study, employees were performing repetitive activities involving lifting, moving, sorting, and retrieving parts. The MATE-XT system uses a lightweight carbon fiber structure and was designed to provide ergonomic support while maintaining freedom of movement.

 Comau reported a 68% reduction in muscle overload during its assessment of the application.

 The case demonstrates that exoskeleton technology is not limited to extremely heavy lifting. Repetitive handling of relatively small and lightweight components can also create ergonomic challenges, making wearable robotics valuable in modern manufacturing environments.

From Exoskeletons to Human-Robot Collaboration

 The development of industrial exoskeletons is also moving toward broader human-robot collaboration.

 Future workplaces may combine:

 Human operators + wearable exoskeletons + collaborative robots + autonomous mobile robots

 In such systems, robots can handle part of the load or transportation process, while the worker performs tasks requiring flexibility, judgment, precision, or dexterity.

 This creates new requirements for lightweight, high-performance structural components.

 Carbon fiber can play an important role in this transition because structural components must remain strong and rigid while minimizing the additional mass carried by the operator.

 Smart CFRP Structures

 The next generation of carbon fiber exoskeleton structures may go beyond conventional composite components.

 Research projects involving German Bionic, SGL Carbon, and Fraunhofer IGCV have explored the integration of sensors directly into CFRP structures.

 Sensor-integrated composite structures could potentially provide information about:

Structural loads

Human movement

Operating conditions

User interaction

Mechanical performance

This opens the possibility of combining lightweight composite structures with sensing and intelligent control systems.

 Such technologies could allow future exoskeletons to automatically adapt assistance according to the user's movements and working conditions.
