Comparison of Bicycle Frame Materials

Introduction

This document provides a comprehensive comparison of three primary materials used in bicycle frame manufacturing: carbon fiber, aluminum alloy, and titanium alloy. The comparison will cover their technical parameters, advantages, and disadvantages to help understand their suitability for different cycling applications.

Material Properties Overview

Bicycle frame materials are chosen based on a combination of mechanical properties that influence performance, durability, and ride quality. Key properties include density, stiffness (Young's Modulus), tensile strength, and fatigue strength.

Density

Density refers to the mass per unit volume of a material. Lighter materials are generally preferred for bicycle frames to reduce overall bike weight, which is crucial for performance, especially in racing and climbing.

Stiffness (Young's Modulus)

Stiffness, measured by Young's Modulus, indicates a material's resistance to elastic deformation under stress. A stiffer frame can offer better power transfer and more precise handling, but can also lead to a harsher ride.

Tensile Strength

Tensile strength is the maximum stress a material can withstand before breaking when stretched or pulled. High tensile strength contributes to the overall durability and safety of the frame.

Fatigue Strength

Fatigue strength describes a material's ability to withstand repeated cycles of stress without failing. Materials with high fatigue limits can endure countless stress cycles, leading to a longer lifespan for the frame.

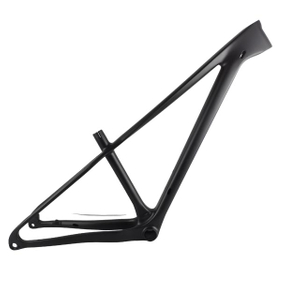

Carbon Fiber Bicycle Frames

Technical Parameters

Carbon fiber is a composite material consisting of carbon filaments embedded in a polymer resin matrix. Its properties are highly anisotropic and can be engineered by orienting the fibers in specific directions. This allows manufacturers to tune stiffness, strength, and compliance in different areas of the frame [1].

Advantages

• Lightweight: Carbon fiber offers the highest strength-to-weight ratio among bicycle frame materials, allowing for very light frames [1].

• Tunable Ride Quality: The ability to orient fibers allows for precise control over stiffness and compliance, enabling manufacturers to create frames that are stiff in areas requiring power transfer and compliant in areas for comfort [1].

• Aerodynamic Shaping: Carbon fiber can be molded into complex aerodynamic shapes that are difficult or impossible to achieve with metal tubing, improving efficiency [1].

• Vibration Damping: Carbon fiber naturally dampens road vibrations, contributing to a smoother and more comfortable ride [1].

Disadvantages

• Cost: Carbon fiber frames are generally the most expensive due to complex manufacturing processes and material costs [1].

• Durability and Impact Resistance: While strong, carbon fiber can be susceptible to catastrophic failure from sharp impacts, which may not always be visible externally. Damage can be difficult and costly to repair [1].

• Fatigue Life: Although often marketed as having an infinite fatigue life, carbon fiber composites do not have a true fatigue limit like steel or titanium. Repeated stress cycles can lead to degradation over time, though properly designed carbon frames are built to last for many years of use [1].

• Environmental Impact: Carbon fiber production and recycling are more energy-intensive and less environmentally friendly compared to metals [1].

Aluminum Alloy Bicycle Frames

Technical Parameters

Aluminum alloys, commonly 6061 and 7005, are widely used due to their balance of performance and cost. They are typically alloyed with elements like magnesium and silicon (6061) or zinc (7005) to enhance their properties [1].

Advantages

• Affordability: Aluminum frames are generally the most affordable, offering a good balance of performance and cost [1].

• Stiffness-to-Weight Ratio: Aluminum provides a good stiffness-to-weight ratio, making it a popular choice for budget to mid-range performance bikes [1].

• Corrosion Resistance: Aluminum alloys are naturally resistant to rust, making them suitable for various weather conditions [1].

• Durability: Aluminum frames are relatively durable and less susceptible to crash or accidental damage compared to carbon frames [1].

Disadvantages

• Ride Quality: Aluminum can result in a harsher ride quality due to its high stiffness and lack of natural vibration damping compared to steel or titanium [1].

• Fatigue Life: Aluminum alloys do not have a true fatigue limit, meaning they will eventually fail after a sufficient number of stress cycles, regardless of the load magnitude [1].

• Repairability: Aluminum frames are difficult to repair once damaged, especially compared to steel or titanium [1].

• Tube Diameter: To achieve comparable stiffness to other materials, aluminum frames often require larger diameter tubes, which can sometimes be aesthetically less appealing to some riders [1].

Titanium Alloy Bicycle Frames

Technical Parameters

Titanium alloys, particularly 3Al-2.5V (3% aluminum, 2.5% vanadium) and 6Al-4V, are known for their exceptional strength-to-weight ratio and corrosion resistance [2].

Advantages

• Strength-to-Weight Ratio: Titanium offers an excellent strength-to-weight ratio, being as strong as steel but significantly lighter [2].

• Ride Quality: Titanium frames are renowned for their smooth and comfortable ride quality, naturally damping vibrations while maintaining stiffness [2].

• Durability and Longevity: Titanium is incredibly durable, highly resistant to corrosion, and has a true fatigue limit, meaning it can theoretically last a lifetime under normal use [2].

• Aesthetics: Titanium frames often feature a raw, unpainted finish that is highly sought after for its timeless and elegant appearance [2].

Disadvantages

• Cost: Titanium frames are typically very expensive due to the high cost of raw materials and the specialized, labor-intensive manufacturing processes required [2].

• Weight: While lighter than steel, titanium is generally heavier than carbon fiber and high-end aluminum frames [2].

• Availability: Titanium frames are less common and often produced by boutique or custom builders, making them harder to find than aluminum or carbon frames [2].

Comparative Table of Properties

Conclusion

Choosing the ideal bicycle frame material depends heavily on a rider's priorities, budget, and intended use. Carbon fiber excels in lightweight performance and tunable ride characteristics, making it a favorite for high-performance racing, but comes at a higher cost and can be vulnerable to impact damage. Aluminum alloy offers an excellent balance of affordability, stiffness, and durability for everyday riding and entry-level performance. Titanium alloy, while expensive, provides a unique blend of comfort, durability, and a timeless aesthetic, often considered a lifetime investment.

Ultimately, advancements in manufacturing techniques mean that a well-designed frame from any of these materials can offer a high-quality riding experience. The 'best' material is subjective and depends on individual preferences and cycling goals.
