With the rapid development of industries such as composite materials, electronics, and carbon fiber structural components, compression molding is playing an increasingly important role in modern manufacturing. Within this process, the role of release film (or release paper) cannot be ignored. It not only affects the surface quality and demolding efficiency of the product, but also directly impacts production costs and yield. This article will explore the key role of release film in compression molding from four perspectives to help readers systematically understand its value and key selection criteria.

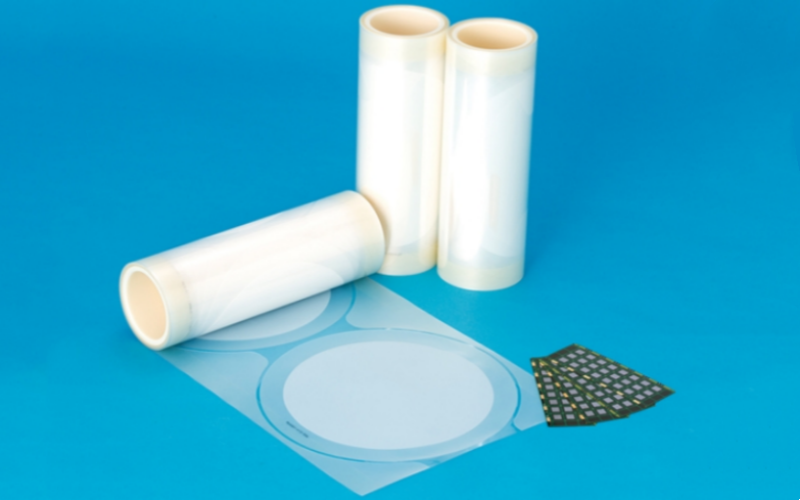

Release film, also known as mold release film or release paper, is a thin film material with a specially treated surface that provides an anti-sticking effect. It is widely used in compression molding or hot pressing processes for products such as composite materials, carbon fiber prepregs, and battery separators. Its primary purpose is to separate the mold from the product during the molding process, preventing adhesion and ensuring smooth demolding.
Release liners can be categorized into the following categories based on their substrate and surface treatment:
PET release liners: Commonly used in high-temperature molding environments, they offer excellent thermal stability;
PE release liners: Suitable for low-temperature molding or as a temporary protective film;
Paper-based release liners: Suitable for cost-sensitive applications, offering excellent air permeability and flexibility;
Fluorinated release liners: Extremely smooth surfaces, suitable for high-performance release requirements.
Selecting the appropriate type requires matching the molding material (such as carbon fiber, epoxy resin, etc.) and the process temperature.
In compression molding, key performance indicators for release liners include:
Release force
Heat resistance (temperature range)
Surface finish (affects the appearance of the finished product)
Chemical stability (avoids reaction with the resin)
Reusability (affects unit cost)
Quality release liners suppliers typically provide comprehensive technical specifications and sample testing to ensure compatibility with customer process requirements.
During the carbon fiber molding process, resin easily adheres to the mold surface under high temperature and pressure, causing mold contamination and product defects. Release film forms a barrier between the part and the mold, ensuring quick and complete demolding after molding, thereby improving production efficiency.
Highly glossy PET release film can impart a mirror-like finish to carbon fiber parts, reducing subsequent polishing steps. Many release paper suppliers customize release film with varying surface roughness to achieve various effects, from matte to glossy.
Molds are high-value assets, and their lifespan is crucial for cost control. Release film effectively prevents direct corrosion and carbon deposits from resin on the mold, reducing mold maintenance frequency and extending its lifespan, saving maintenance costs.
In large-scale production, frequent mold cleaning is not only time-consuming but can also damage the mold surface. With high-quality release film, most demolding processes require no mold cleaning, significantly reducing downtime and achieving greater process stability.
Release films of different materials have varying temperature resistance. For example, PET film can withstand temperatures exceeding 200°C, making it suitable for hot-pressing carbon fiber molding; while PE film is suited for lower-temperature lamination processes. When selecting a release film, it's important to clearly understand the process's temperature profile and pressurization time to avoid film deformation or failure.
For products with curved surfaces or complex edges, a film with low release force is recommended to avoid structural damage caused by excessively forceful demolding. Conversely, for flat products or high-viscosity resin systems, films with medium to high release force are recommended.
Some low-quality film materials may release migratable substances from their surfaces, affecting the resin curing reaction. High-quality release films should be chemically inert, non-reactive, and non-affective to structural properties. Choosing a trustworthy release liner supplier is crucial.
For applications requiring multiple molding cycles (such as in RTM processes), reusable release liners with high mechanical strength and stability should be selected. While this may require a slightly higher initial investment, it is more economical in the long run.
In practice, molding processes vary significantly between customers. A high-quality release liner supplier should offer customization services, including adjustments to parameters such as thickness, width, coating type, and surface roughness, and provide technical support during the customer trial phase.
Release liner is a precision auxiliary material. Any batch variation can lead to demolding issues or quality fluctuations. Selecting a supplier with a strict quality control system helps ensure product consistency and stability.
When project schedules are tight, a supplier's lead time is particularly important. It is recommended to choose a supplier with on-hand inventory and fast delivery. Suppliers like Revolve CF release paper not only offer a variety of release film specifications but also offer quick customization based on customer needs, ensuring flexible delivery.
While price isn't the only factor, in long-term relationships, the true value for money lies in comprehensively considering factors such as unit cost, service life, and quality acceptance rate. By partnering with a professional supplier, you can significantly reduce your overall cost of ownership.
The role of release film in the compression molding process goes far beyond simply "mold release." It shapes the product's appearance, protects the mold's lifespan, and is a key factor in ensuring manufacturing efficiency and cost control. Whether in carbon fiber components, electronic composites, or aerospace, the proper selection and application of release film is crucial for improving manufacturing performance.
