What Are The Weaving Methods of Carbon Fiber? Comparison of Plain, Twill And Satin

Carbon fiber is widely used in aerospace, automobile manufacturing, sports equipment and other fields due to its excellent mechanical properties and lightweight characteristics. In the actual application of carbon fiber materials, its weaving method directly affects the appearance, strength, flexibility and other key properties of the material. This article will analyze the three mainstream weaving methods - plain, twill and satin from four aspects: classification of weaving methods, performance comparison, typical applications and selection recommendations, and make selection recommendations based on actual engineering needs.

Overview of carbon fiber weaving methods

What is carbon fiber weaving method?

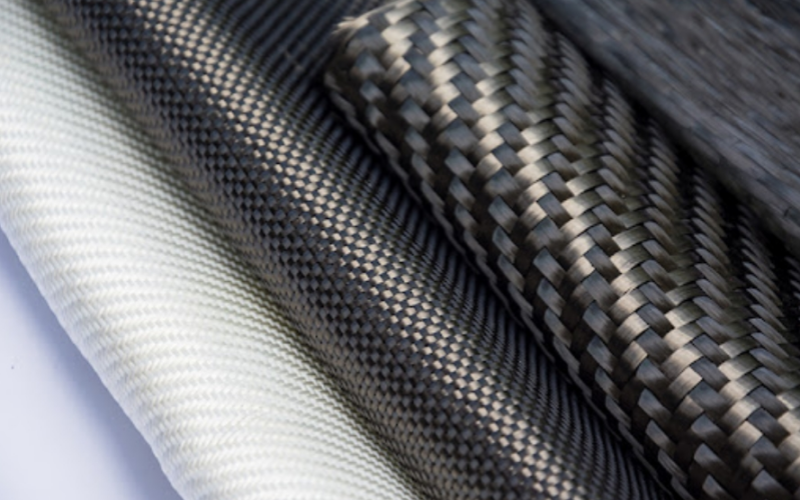

Carbon fiber weaving method refers to the process of forming a fabric by staggering carbon fiber bundles (Tow) in a specific way. Different weaving methods will directly affect the fabric's structural tightness, flexibility and surface finish.

Introduction to the three major weaving methods

If you need to know about carbon fiber woven fabrics of different weights and specifications, please contact Revolve CF carbon fiber material supplier. Website: www.revolve-cf.com; Email: HarveyXu@revolve-cf.com

Detailed comparison of the performance of the second and third weaving methods

Plain weave: the most stable choice

Advantages:

Many weaving points and compact structure;

Not easy to loosen when cutting, suitable for small and complex molds;

Has good dimensional stability

Disadvantages:

It is hard and not easy to fit complex curved surfaces;

The surface texture is relatively ordinary and poor in decorativeness.

Twill weave: performance and aesthetics are combined

Advantages:

Good softness and easy to lay layers;

The oblique texture makes the visual sense more three-dimensional;

Commonly used in automotive accessories and sporting goods.

Disadvantages:

The stability is slightly inferior to plain weave;

The edges should be prevented from loosening when cutting.

Satin weave: combination of advanced appearance and performance

Advantages:

Smooth surface and good reflectivity;

Strong formability, suitable for complex curved surfaces;

Widely used in high-end decoration and aerospace fields.

Disadvantages:

Few weaving points, easy to produce delamination risks;

Higher requirements for laying process.

Analysis of typical application scenarios

Typical applications of plain weave

Model aircraft, RC product shell

Electronic equipment shell

Small curved surface of industrial molds

Typical applications of twill weave

Carbon fiber bicycle frame

Automotive interior parts (such as steering wheels, trims)

Industrial fan blades

Typical applications of satin weave

Aerospace composite structure

Car carbon fiber hood, spoiler

High-end carbon fiber products (such as customized accessories)

When purchasing carbon fiber cloth, you should choose the appropriate weaving method according to the purpose of the product. As a professional carbon fiber material supplier, Revolve CF can provide carbon fiber fabrics of various specifications and weights such as plain weave, twill, satin weave, etc. according to customer needs.

How to choose the appropriate carbon fiber weaving method?

Selection based on product appearance complexity

Selection based on mechanical performance requirements

For structures with high strength and stability requirements, it is recommended to use plain weave;

For medium structures that need to take into account both strength and formability, twill weave can be selected;

For structures with high requirements for aesthetics and complex surface fitting, satin weave is preferred.

Selection based on budget and process difficulty

Conclusion: Choose the weaving method reasonably to improve product performance and quality

Different carbon fiber weaving methods are suitable for different application scenarios and technical requirements. Understanding the performance differences of various weaving methods will help design engineers, purchasers and manufacturers to accurately select materials, save costs and improve quality. Revolve CF is committed to providing customers with one-stop solutions such as high-quality carbon fiber cloth, carbon fiber prepreg, and carbon fiber sheet, covering everything from R&D support to technical guidance, truly achieving engineering efficiency and material optimization.
